Yonca Shipyard holds a prominent position both in Turkey and globally in the production of high-speed MRTP boats using its proprietary advanced composite technologies. The shipyard specializes in building combat vessels, high-speed interception boats, special operations crafts, and armed unmanned surface vehicles (AUSVs), in various weapon and sensor, configurations tailored to end-user requirements, with lengths up to 66 meters and displacements up to 850 tons from advanced composites, steel and aluminum. Shipyard can create and build its own unique boat design in line with customer demands with in-house engineering ability and as of today it has built and delivered more than 170 boats to 15 government entities in 11 countries.

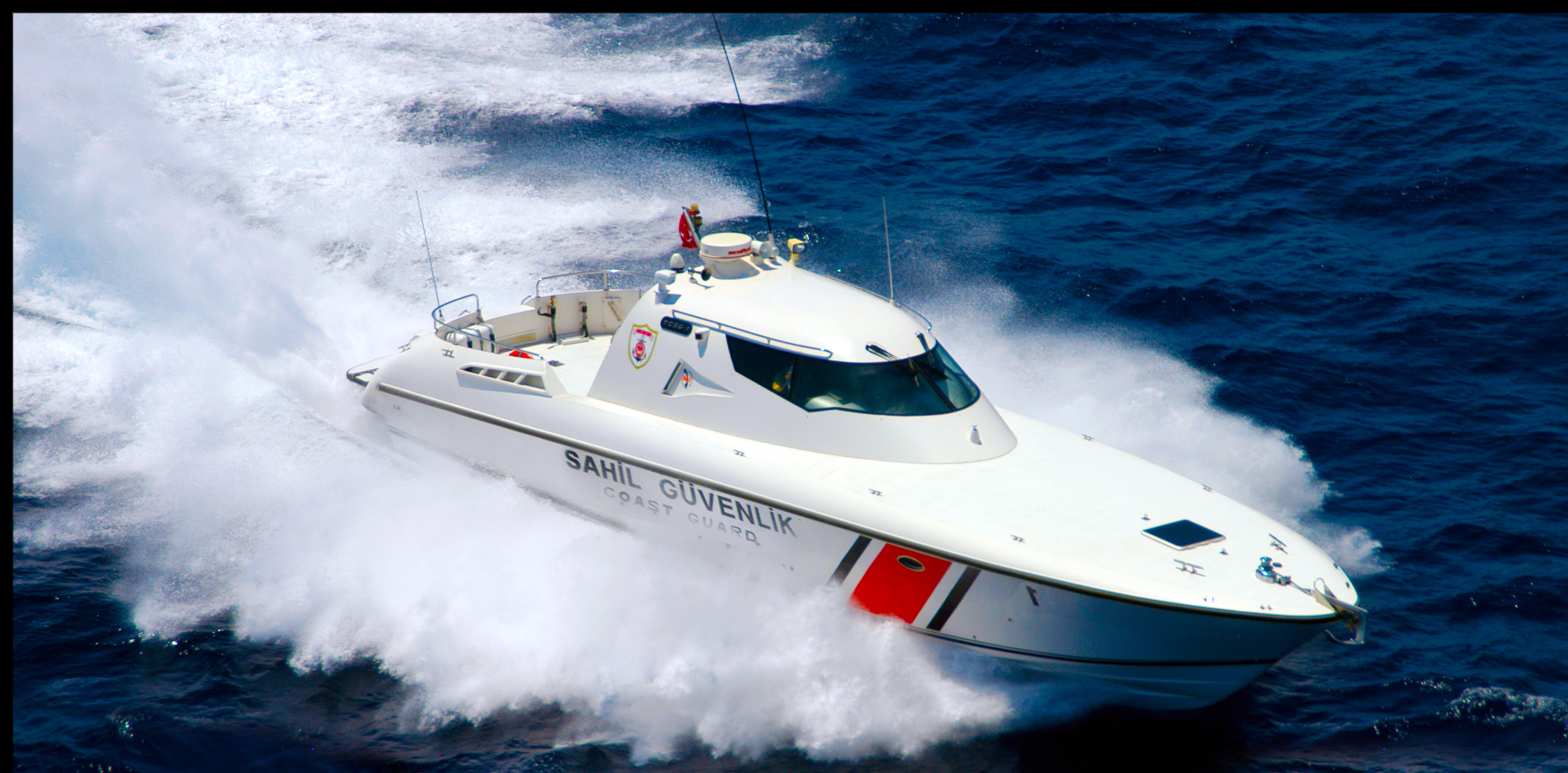

MRTP15 FAST INTERVENTION CRAFT (FIC) IS MADE OF ADVANCED COMPOSITE MATERIAL AND SPECIALLY DESIGNED TO MEET THE INTERVENTION AND INTERCEPTION DUTIES OF TURKISH COAST GUARD COMMAND WITHIN THE COASTAL WATERS OF ITS JURISDICTION AREA. IT IS EQUIPPED WITH 12.7MM STABILIZED TURRET. THE BOAT IS POWERED WITH 2 DIESEL ENGINES AND IS DRIVEN WITH WATERJET OR ARNESSON SURFACE DRIVES SYSTEMS. THE SPEED OF THIS BOAT CAN REACH UP TO 61KTS. AS OF TODAY A TOTAL OF 25 UNITS OF MRTP15 FIC HAS BEEN BUILT AND DELIVERED. THE GREAT MAJORITY OF THE BOATS ARE ACTIVELY IN OPERATION IN TURKISH COAST GUARD COMMAND, WHILE THE REST ARE IN SERVICE FOR PAKISTAN, TURKISH REPUBLIC OF NORTHERN CYPRUS AND TURKISH CUSTOMS ENFORCEMENT. LoA. 16,94M, BEAM: 4,09M

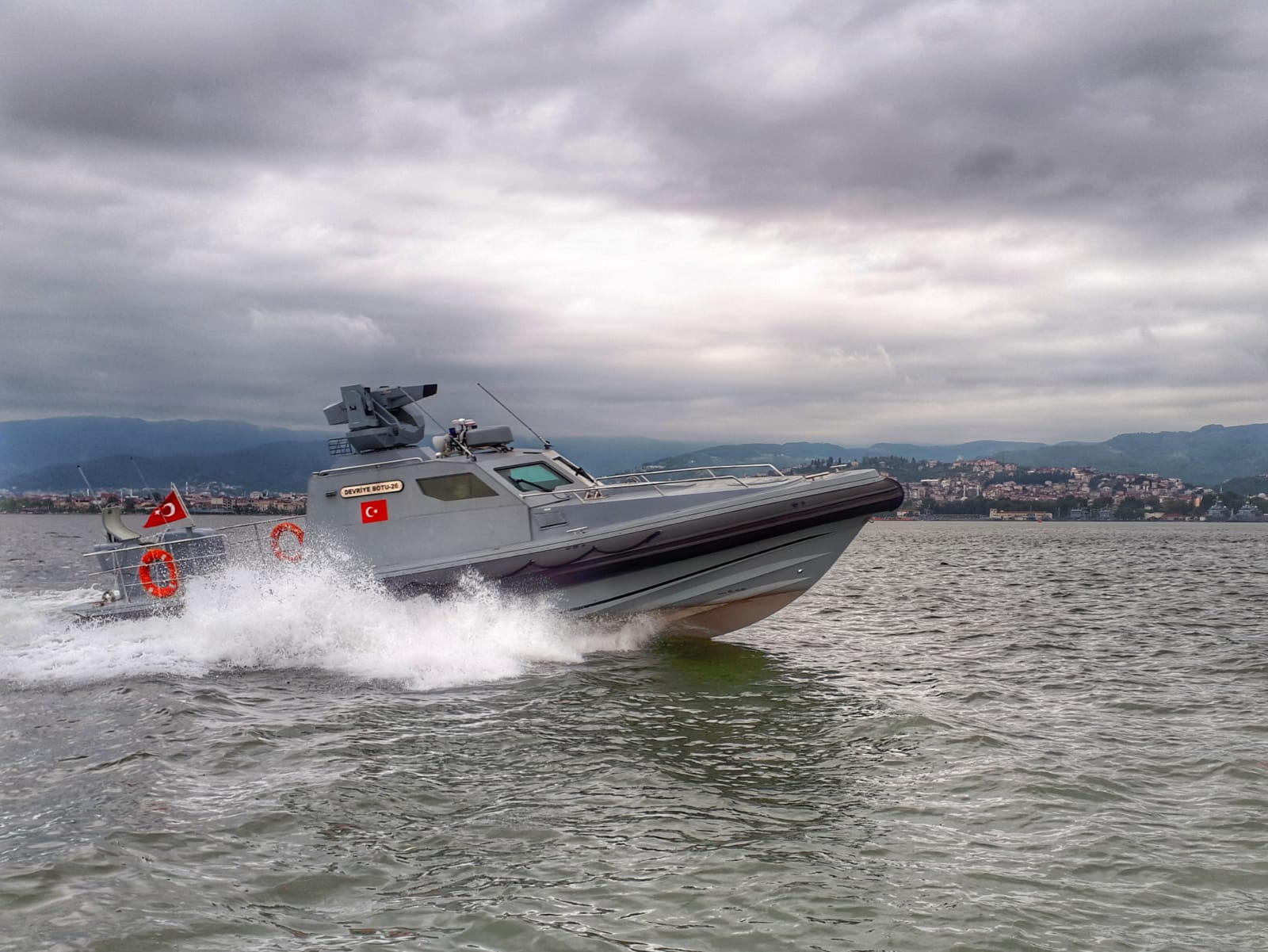

MRTP12 FAST PATROL CRAFT (FPC) IS MADE OF ADVANCED COMPOSITE MATERIAL AND DESIGNED FOR PROVIDING PROTECTION TO HIGH VALUE UNIT (HVU)’S IN THE NAVAL BASES AND PORTS. IT IS EQUIPPED WITH 12.7MM STABILIZED TURRET ON THE TOP OF THE WHEEL HOUSE AND THE WHEEL HOUSE IS BALLISTICLY PROTECTED. THE BOAT IS POWERED WITH 2 DIESEL ENGINES AND IS DRIVEN WITH WATERJET SYSTEM AND THE SPEED OF THE BOAT CAN REACH UP TO 45KTS. AS OF TODAY 8 UNITS OF MRTP12 FPC HAS BEEN BUILT AND DELIVERED TO TURKISH NAVY. LoA: 12,65M, BEAM: 3,45M

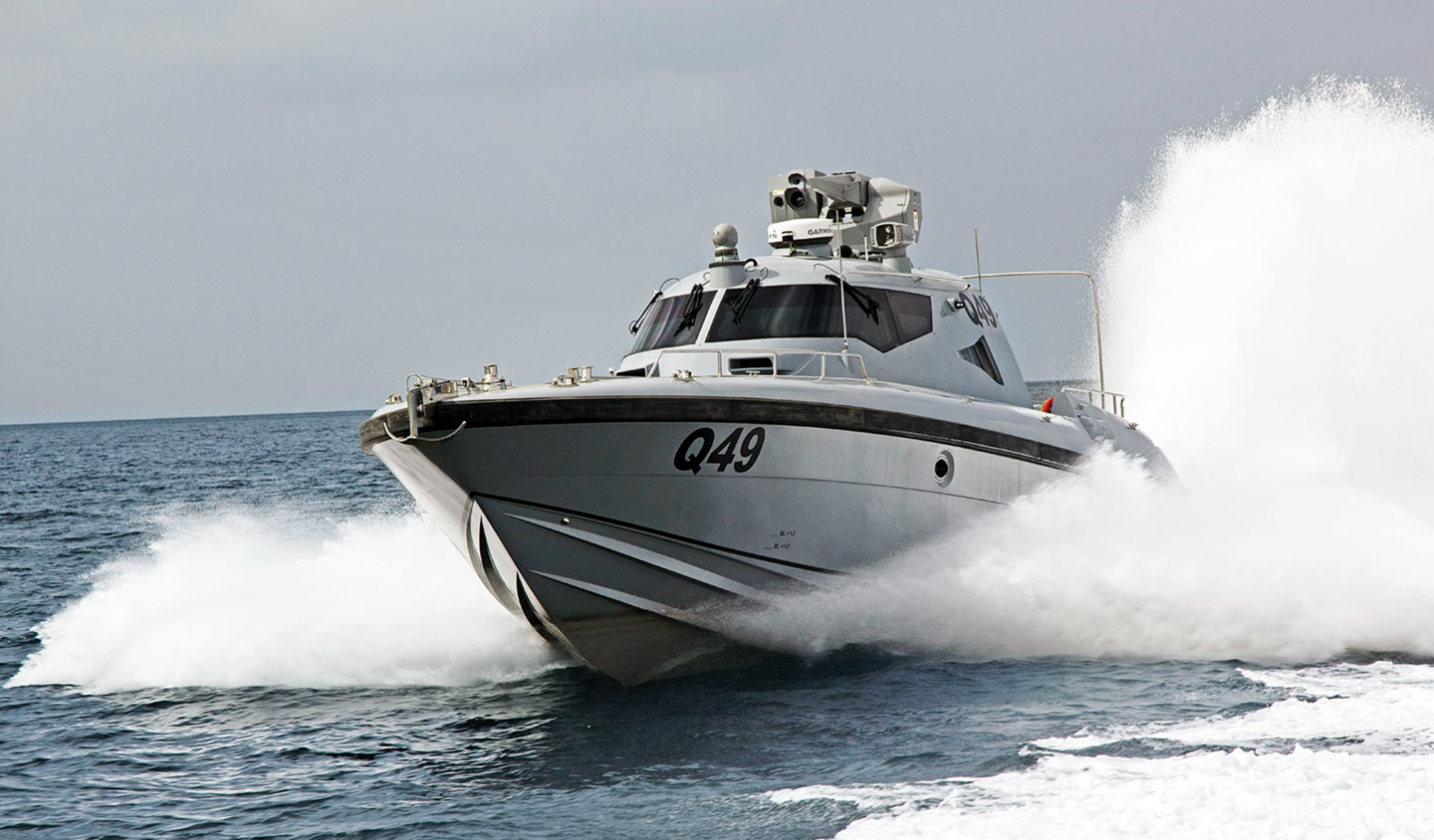

MRTP16 FAST INTERVENTION BOAT (FIC) , IS MADE OF ADVANCED COMPOSITE AND DESIGNED FOR INTERVENTION, INTERCEPTION AND DETERENCE MISSIONS IN COASTAL WATERS. MRTP16 FIC IS SPECIALLY DESIGNED FOR VERY HIGH SPEED. THE BOAT IS POWERED WITH 2 DIESEL ENGINES AND IS DRIVEN WITH ARNESSON SURFACE DRIVES. THE SPEED OF THIS BOAT CAN REACH UP TO 65KTS THE SUPER FAST INTERCEPTOR (SFI) VERSION OF THE BOAT, WHICH IS DESIGNED FOR COAST GUARD OF OMAN CAN REACH UP TO 75 KTS. IT IS EQUIPPED WITH 12.7MM STABILIZED TURRET FOR DETERENCE AND INTERVENTION PURPOSES. AS OF TODAY A TOTAL OF 59 UNITS OF MRTP16 FIC HAVE BEEN BUILT AND DELIVERED FOR UAE, MALASIA, QATAR, OMAN, UKRAINE, TURKISH CUSTOMS ENFORCEMENT AND TURKISH HEALTH DEPARTMENT. LoA. 17,75M, BEAM: 4,19M

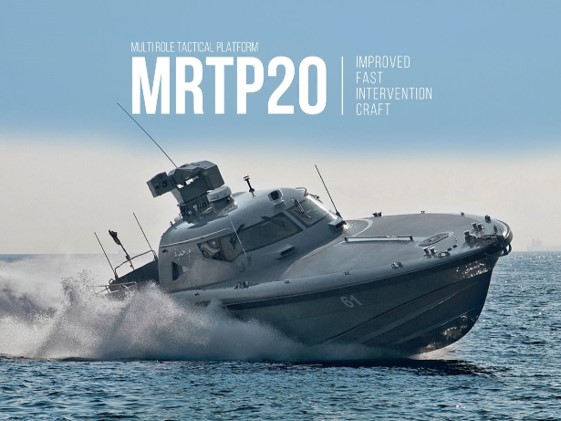

MRTP20 IMPROVED FAST INTERVENTION CRAFT (FIC), IS MADE OF ADVANCED COMPOSITE MATERIAL AND DESIGNED TO PROVIDE BETTER SEAKEEPING AND PERFORM INTERVENTION AND INTERCEPTION DUTIES OF NAVY AND COAST GUARD IN HIGH SEA STATES LIKE 3 AND ABOVE. FOR DETERENCE, INTERVENTION AND SURVEILLANCE MISSIONS, IT IS EQUIPPED WITH 12.7MM STABILIZED TURRET ON THE TOP OF THE WHEELHOUSE AND ALSO CAN BE EQUIPPED WITH E/O SYSTEMS IF REQUIRED. THE BOAT IS POWERED WITH 2 DIESEL ENGINES AND IS DRIVEN WITH WATERJET OR ARNESSON SURFACE DRIVE SYSTEMS AND THE SPEED CAN BE REACH UP TO 60 KTS. AS OF TODAY 37 UNITS OF MRTP20 FIC HAS BEEN BUILT AND DELIVERED IN TOTAL FOR TURKISH COAST GUARD, TURKISH NAVY, QATAR, EGYPT AND GEORGIA. LoA. 22,55M, BEAM: 4,76M

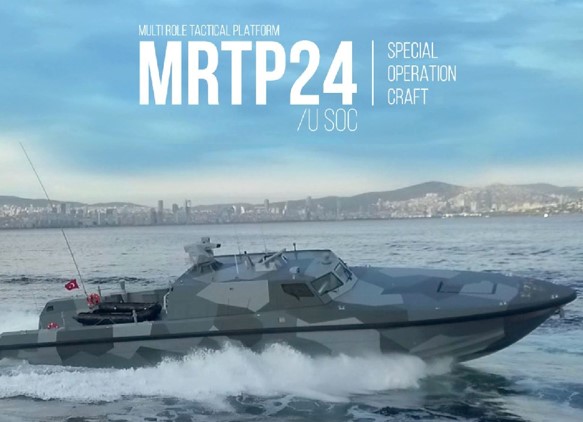

MRTP24/U SPECIAL OPERATIONS CRAFT (SOC) IS MADE OF ADVANCED COMPOSITE MATERIAL. MAIN MISSION OF THE BOAT IS TO DEPLOY THE NAVY SEAL TEAM TO THE AREA OF OPERATION. IT HAS BEEN EQUIPPED WITH 12.7MM OR 25MM STABILIZED TURRET ON THE TOP OF THE WHEELHOUSE AND E/O SYSTEMS FOR SURVEILLANCE AND SITUATIONAL AWARENESS. THE BOAT CAN ALSO CARRY 16 MISSION LOADED NAVY SEALS WITH 2 INFLATABLE MISSION BOATS ON BOARD. MRTP24/U MK2 SOC IS POWERED WITH 2 DIESEL ENGINES AND IS DRIVEN WITH WATERJET SYSTEM AND THE SPEED OF THE BOAT CAN REACH UP TO 54 KTS. THE RANGE AT ECONOMIC SPEED IS AROUND 500 NM. CURRENTLY 8 UNITS IN TOTAL OF THESE BOATS ARE IN SERVICE IN TURKISH NAVY AS 4 UNITS AND IN QATAR EMIRI JOINT SPECIAL FORCES AS 4 UNITS. LoA. 27,30M, BEAM: 5,53M
.jpg)

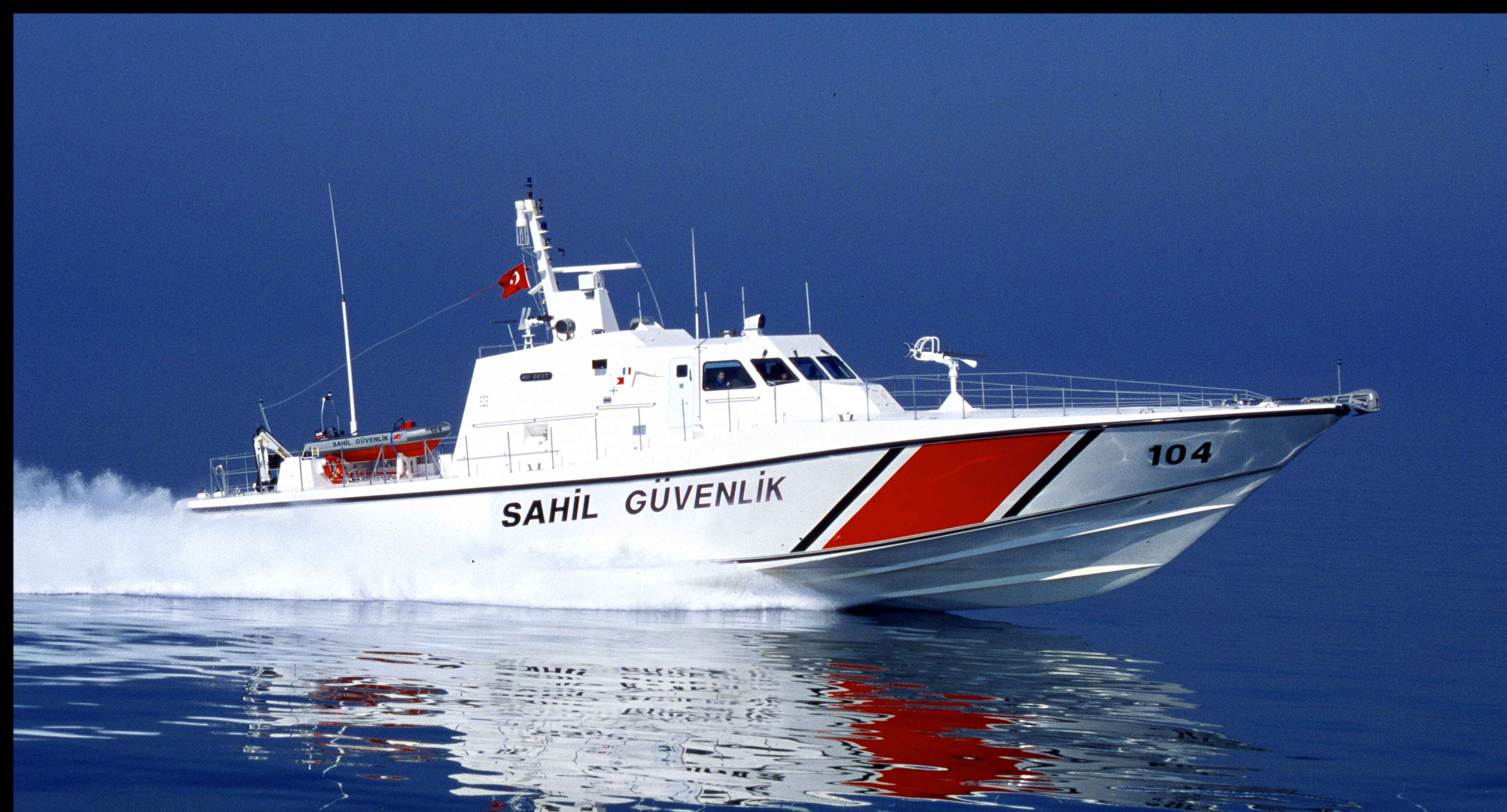

MRTP29 COAST GUARD BOAT IS IS MADE OF ADVANCED COMPOSITE MATERIAL AND DESIGNED TO MEET LONG TERM PATROL, ESCORT AND INSPECTION DUTIES OF TURKISH COAST GUARD COMMAND IN BOTH COASTAL WATERS AND OPEN SEAS. IT CAN BE EQUIPPED WITH 12.7MM OR 25MM STABILIZED TURRET AND E/O SYSTEMS FOR INTERVENTION AND SURVEILLANCE PURPOSES. MRTP29 COAST GUARD BOAT IS POWERED WITH 2 DIESEL ENGINES AND IS DRIVEN WITH WATERJET SYSTEM AND THE SPEED OF THE BOAT CAN REACH UP TO 47 KTS. THE RANGE AT ECONOMIC SPEED IS AROUND 750 NM. AS OF TODAY 9 UNITS OF MRTP29 HAVE BEEN BUILT AND DELIVERED FOR TURKISH COAST GUARD. LoA. 31,20M, BEAM: 6,70M

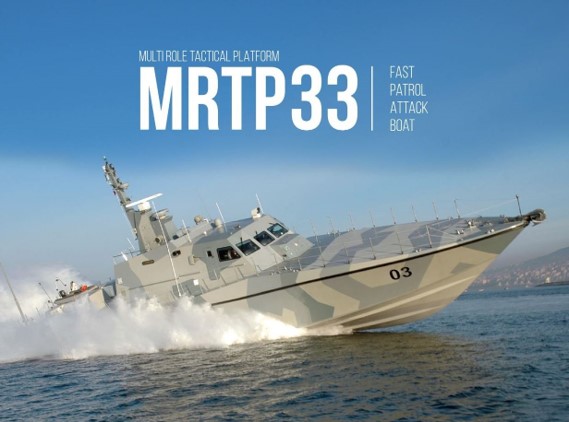

MRTP33 FAST PATROL BOAT (FPB) IS MADE OF ADVANCED COMPOSITE MATERIAL AND DESIGNED TO MEET THE MISSION REQUIREMENTS OF TURKISH COAST GUARD COMMANDS IN OPEN SEAS FOR LONGER PERIODS IN ROUGH SEA CONDITIONS. IT IS EQUIPPED WITH 12.7MM OR 25MM STABILIZED GUN TURRET AND E/O SYSTEMS. WITH ITS ENHANCED SEA KEEPING AND ENDURANCE CAPABILITY AND ACCOMODATION STANTDARTS, THIS BOAT CAN CONDUCT PATROL AND SURVEILLANCE DUTIES UP TO SEA STATE 3 OR 4 FOR LONGER PERIODS UP TO 3 DAYS. MRTP33 FPB IS POWERED WITH 2 DIESEL ENGINES AND WATERJET SYSTEM. THE SPEED CAN REACH UP TO 43 KTS. THE RANGE IS AROUND 750 NM. AS OF TODAY 16 UNITS OF MRTP33 FPB HAVE BEEN BUILT AND DELIVERED FOR TURKISH COAST GUARD, PAKISTAN AND GEORGIA. LoA. 35,60M, BEAM: 6,70M

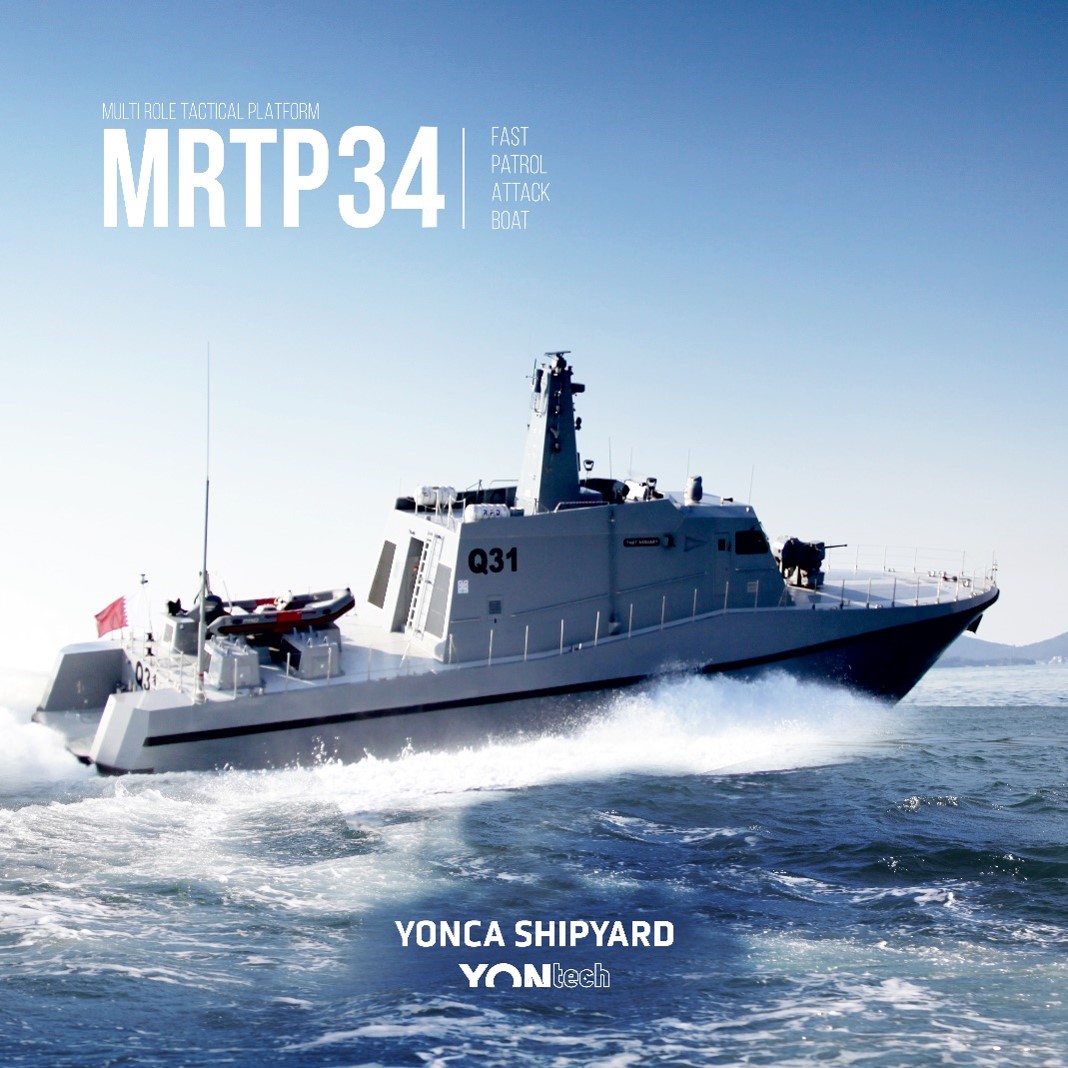

MRTP34 FPB IS MADE OF ADVANCED COMPOSITE MATERIAL AND IS DESIGNED TO CONDUCT NAVY MISSIONS ON BOTH COASTAL WATERS AND OPEN SEAS. MRTP34 FPB IS EQUIPPED WITH 30MM STABILIZED TURRET ON THE BOW AND E/O SYSTEMS FOR PATROL, SURVEILLANCE AND INTERVENTION DUTIES. IT CAN ALSO BE EQUIPPED WITH MIDDLE SIZE SURFACE TO SURFACE MISSILE (SSM) SYSTEMS LIKE MBDA’S MARTE OR ROKETSAN’S ÇAKIR GM ALONG WITH A DEDICATED COMBAT MANAGEMENT SYSTEM AND DATA LINK SYSTEM FOR SURFACE WARFARE MISSIONS. MRTP34 IS POWERED WITH 2 DIESEL ENGINES AND IS DRIVEN WITH WATERJET SYSTEM AND THE SPEED OF THE BOAT CAN REACH UP TO 42 KTS. THE RANGE IS AROUND 750 NM. AS OF TODAY 3 UNITS OF MRTP33 FPB HAVE BEEN BUILT AND DELIVERED FOR QATAR EMIRI NAVY. LoA. 36,80M, BEAM: 6,70M.

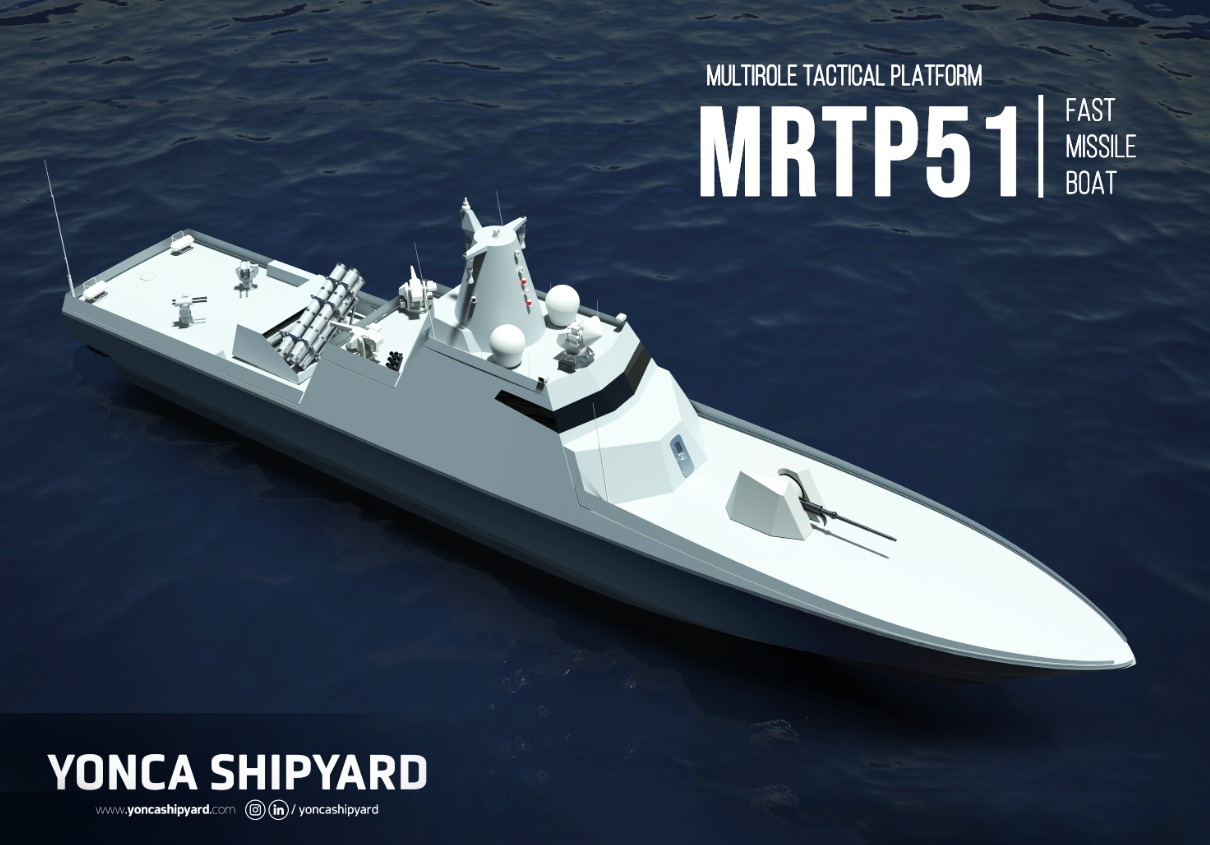

MRTP51 FMB IS DESIGNED FOR TURKISH NAVY’S FAST PATROL BOAT PROJECT. THE MAIN PURPOSE OF THIS BOAT IS TO MEET SURFACE WARFARE OPERATIONAL REQUIREMENTS OF NAVIES IN BOTH LITTORAL WATERS AND OPEN SEAS. IT IS EQUIPED WITH MODERN COMMAND MANAGEMENT SYSTEM, DATA LINK SYSTEM, EW SYSTEMS, 76 MM MAIN GUN, LONG RANGE ANTI SHIP MISSILE SYSTEM AND CHAFF SYSTEMS. MRTP51 FMB IS POWERED WITH 4 DIESEL ENGINES AND IS DRIVEN WITH 4 WATER JET SYSTEMS AND THE SPEED OF THE BOAT CAN REACH UP TO 54 KTS. THE RANGE AT ECONOMIC SPEED IS AROUND 1100 NM. THE BOAT IS CAPABLE TO OPERATE IN ROUGH SEA CONDITIONS UP TO SEA STATE 6. LOA:54m, BEAM:9m

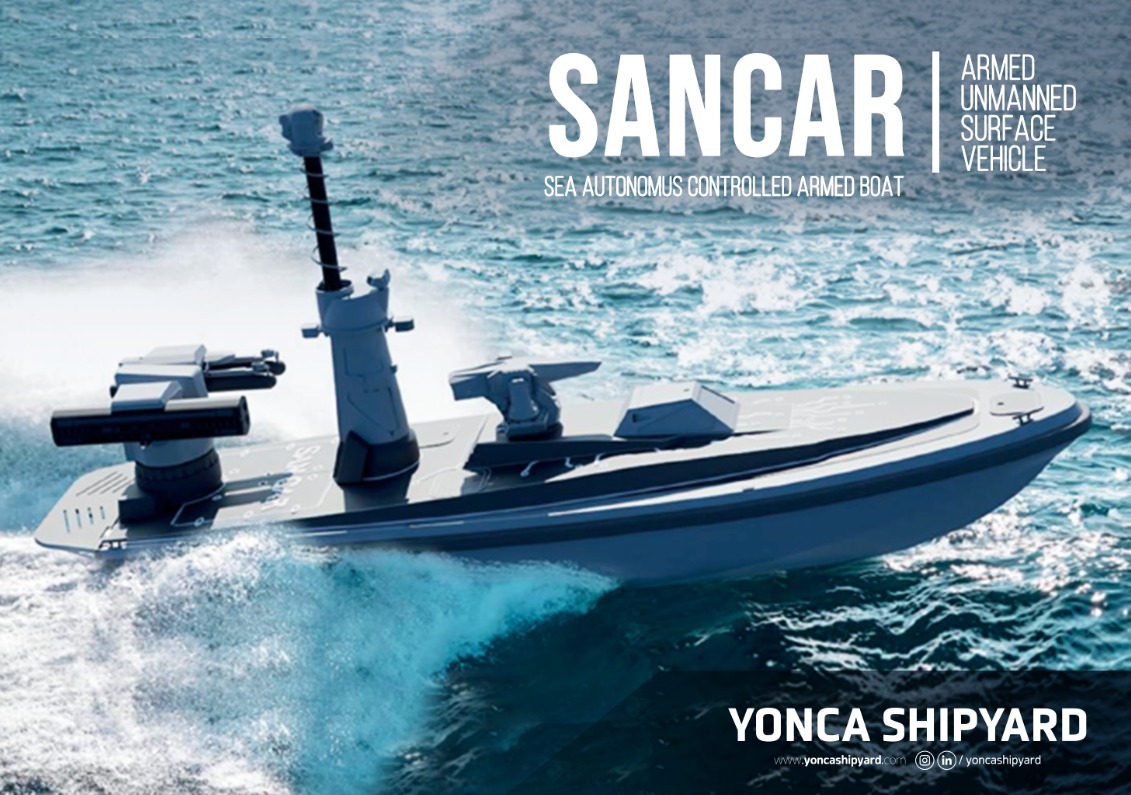

SANCAR ARMED UNMANNED SURFACE VESSEL (AUSV) IS MADE OF ADVANCED COMPOSITE MATERIAL. THE BOAT IS BUILT AND EQUIPPED BY YONCA SHIPYARD. THE MISSION SOFTWARE IS PROVIDED BY HAVELSAN. THE MISSION OF SANCAR IS TO SUPPORT ANTI SURFACE WARFARE AND MINE COUNTER MEASURE OPERATIONS. SANCAR IS REMOTELY CONTROLLED VIA RF/GSM/SATELLITE BY A GROUND CONTROL STATION. IT HAS ALSO AUTONOMOUS NAVIGATION AND MISSION CAPABILITY. IT IS EQUIPPED WITH A 12.7MM STABILIZED TURRET, COMMUNICATION AND E/O SYSTEMS, A SHORT RANGE SSM SYSTEM. G/M CAN BE REPLACED WITH A SIDE SCAN SONAR SYSTEM. SANCAR AUSV IS POWERED WITH 2 DIESEL ENGINES AND WATERJET. THE SPEED IS 40KTS. THE RANGE IS 450 NM. THE BOAT IS CAPABLE TO OPERATE UP TO 70 HOURS. LoA. 12,7M, BEAM: 3,3 M.

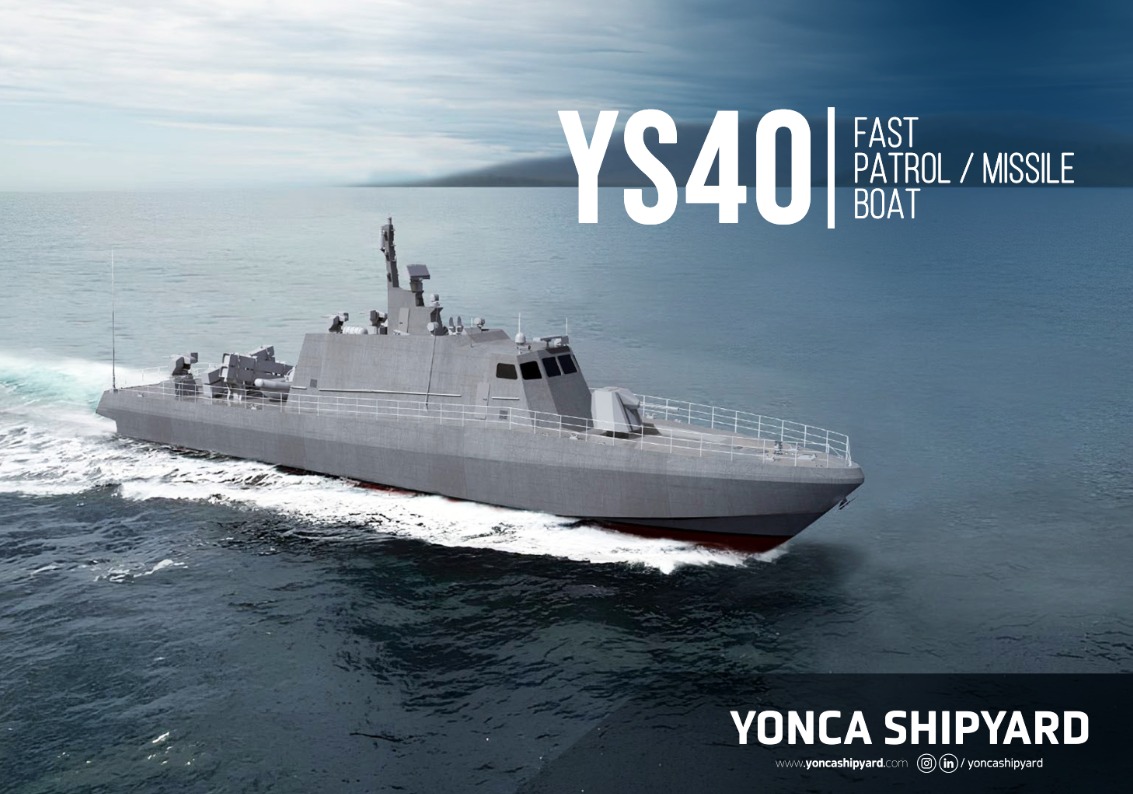

YS40 PB IS DESIGNED TO BE BUILT USING STEEL AND ALUMINUM. ITS HULL SHARES THE SUCCESFULLY PROVEN DESIGN OF MRTP33/34 FPBS IN SERVICE WITH QATAR, PAKISTAN, AND THE TURKISH COAST GUARD. IT CAN BE EQUIPPED WITH 30/40MM MAIN GUN, 30MM SECONDARY WEAPON (OR SHORT-RANGE SAM), SSM, 12.7MM STABILIZED TURRETS, 3D SURVEILLANCE RADAR, FIRE CONTROL RADAR, E/O SYSTEMS, CHAFF SYSTEM, AND A COMBAT MANAGEMENT SYSTEM. POWERED BY DIESEL ENGINES AND WATERJETS, IT REACHES 35 KNOTS. THE OPERATIONAL RANGE OF YS40 AT ECONOMICAL SPEED IS 2000 NM. IT FEATURES A CITADEL SYSTEM FOR CBRN MEASURES, OPERATES IN SEA STATE 5, AND STAYS AT SEA UP TO 5 DAYS WITH COLD STORAGE AND WATER PRODUCTION CAPABILITY. LENGTH: 40M, BEAM: 8.3M.
